Parasol™ is designed for Australian conditions and made to stringent quality and manufacturing specifications.
Parasol™ is a commercial grade knitted shadecloth suitable for tension structures and other heavy duty applications. It is manufactured using a combination of high density monofilament and tape which offers a higher degree of protection from UV radiation, known to cause sunburn and skin cancers.
For ease of fabrication and improved performance, Parasol™ shadecloth has been ‘heat set’ before rolling, to improve lay flat characteristics and dimensional stability.
- UV stabilized
- Heat set
- Abrasion resistant
- Up to 95% UVR block
- High strength
- 10 year warranty

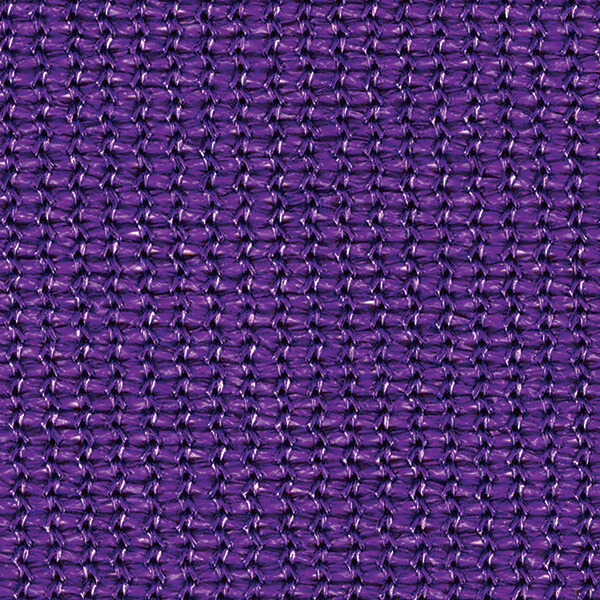

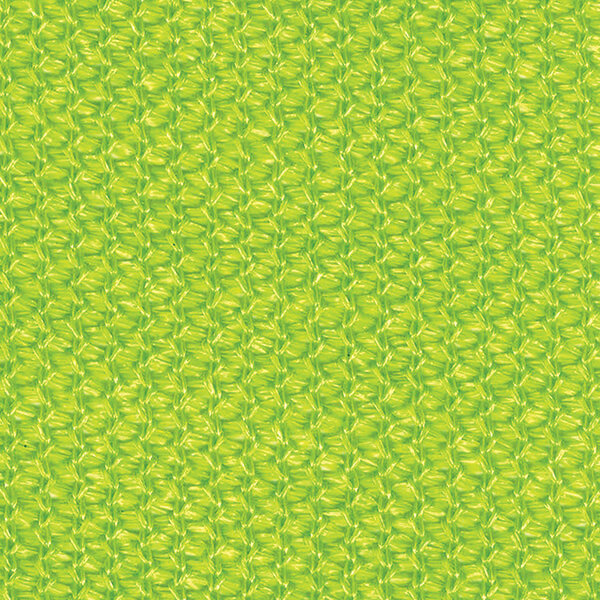

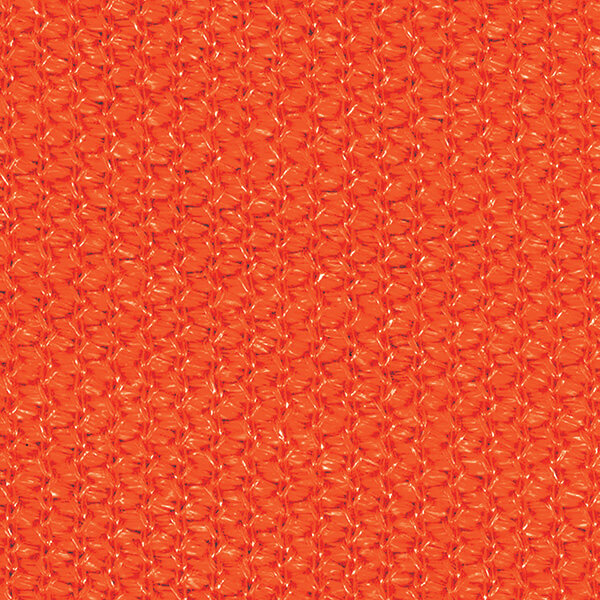

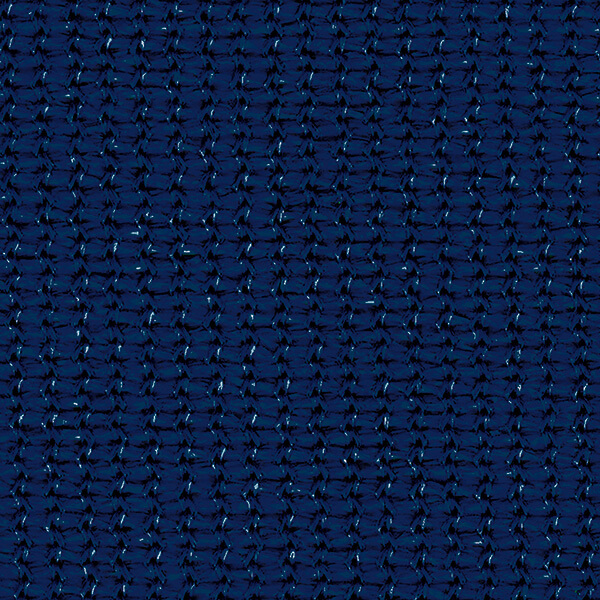

Parasol™ is available in 19 designer colors.
See more information on ParasolTM Commercial Grade Shadecloth
| Technical Specifications | WARP | WEFT | ||
|---|---|---|---|---|
| Breaking Force (per ASTM D 5034) | lbs | 231 | 419 | |
| Elongation at Break (per ASTM D 5034) | % | 104 | 69 | |
| Tearing Strength (per ASTM D 751-06) | lbf | 39 | 49 | |
| Mullen Burst (per ASTM D 751-06) | psi | face | 500+* | |
| * No break recorded; result exceeded instrument’s capacity | ||||
| Color | Cover Factor * | UVR | Mean UPF | Shade Factor |
|---|---|---|---|---|

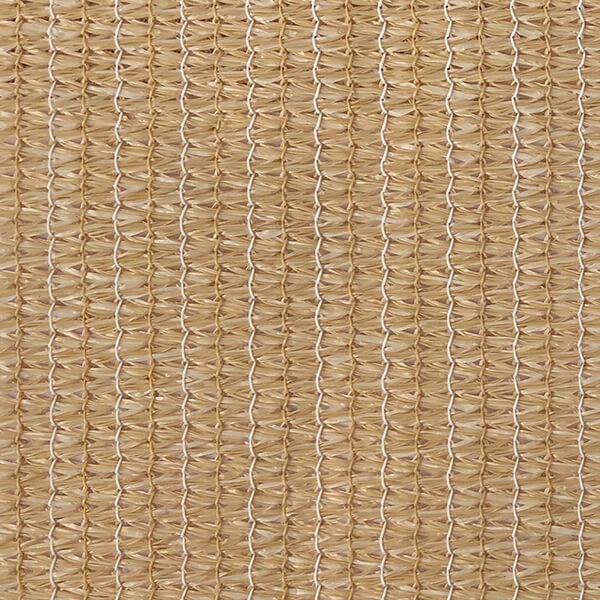

| Beach Sand | 91.5 | 91 | 11.8 | 80.2 |

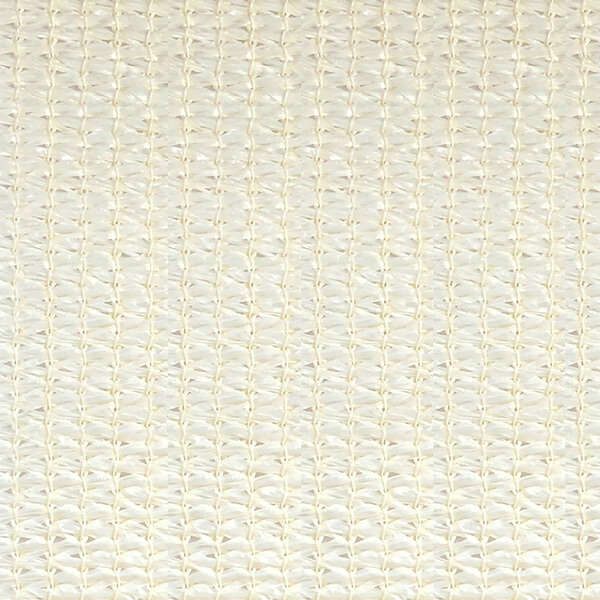

| Ivory | 93 | 91.5 | 14.1 | 70.4 |

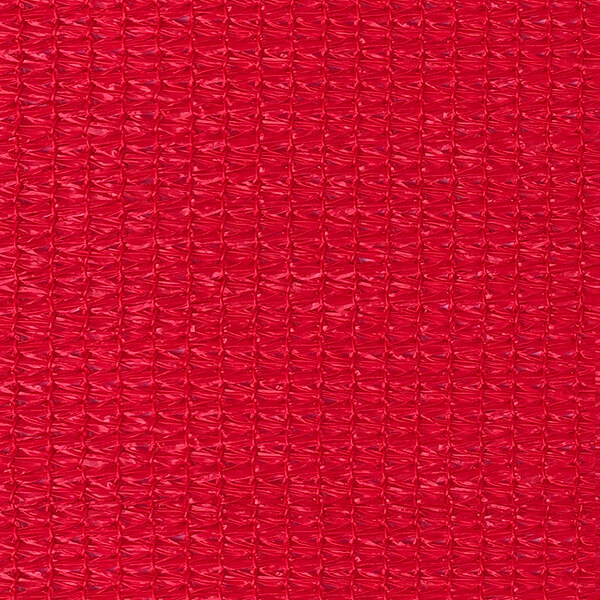

| Red | 91.8 | 92.1 | 15.7 | 81.6 |

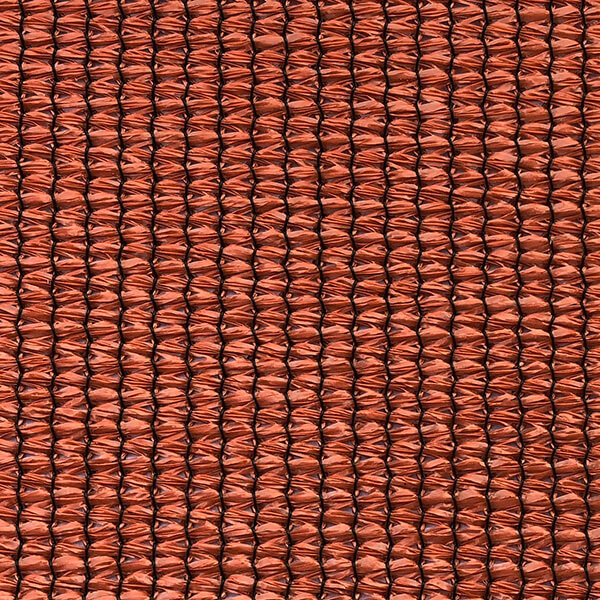

| Terracotta | 91.6 | 92.2 | 14.1 | 86.5 |
| Harvest | 93.1 | 92.7 | 14.5 | 84.5 |

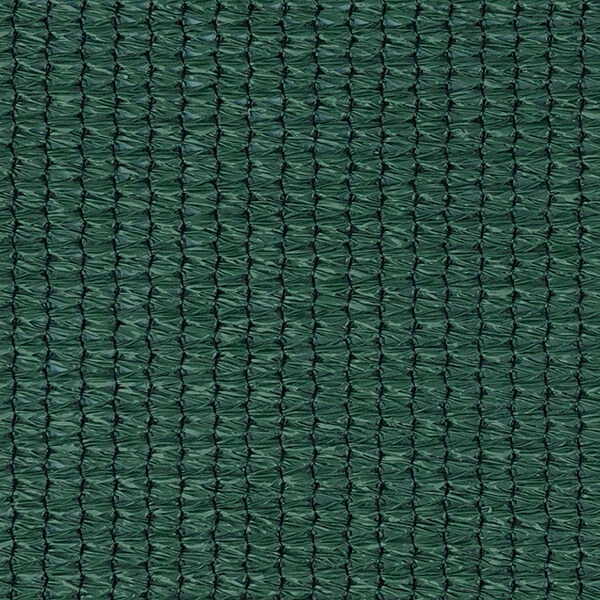

| Forest Green | 93.5 | 93.2 | 15.5 | 92.5 |

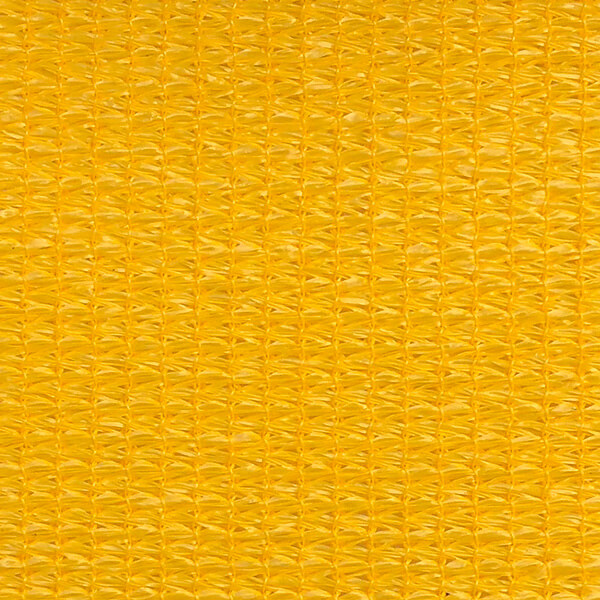

| Yellow | 92.4 | 92.3 | 13.3 | 74.1 |

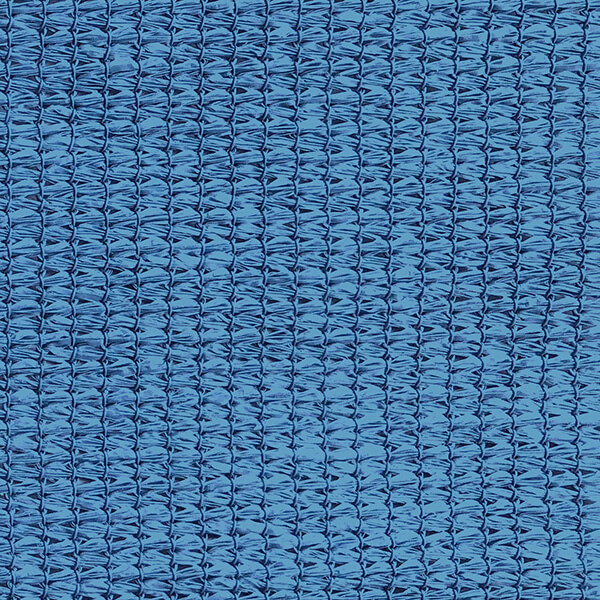

| Sky Blue | 93.9 | 93.6 | 17.1 | 91 |

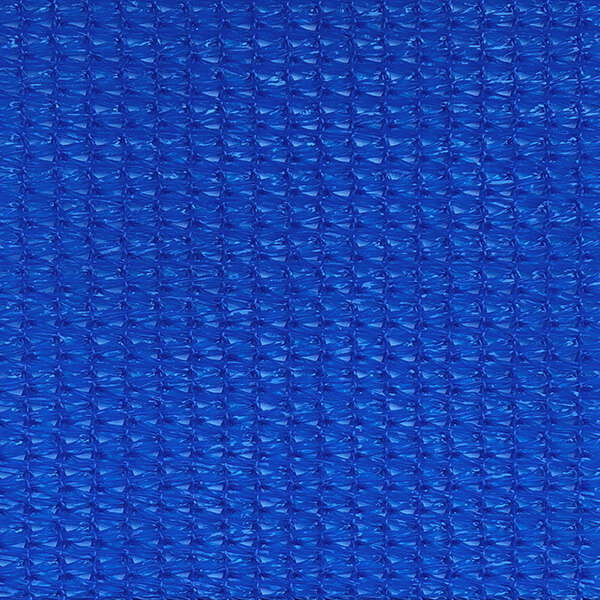

| Ocean Blue | 94.5 | 93.2 | 16.2 | 87.4 |

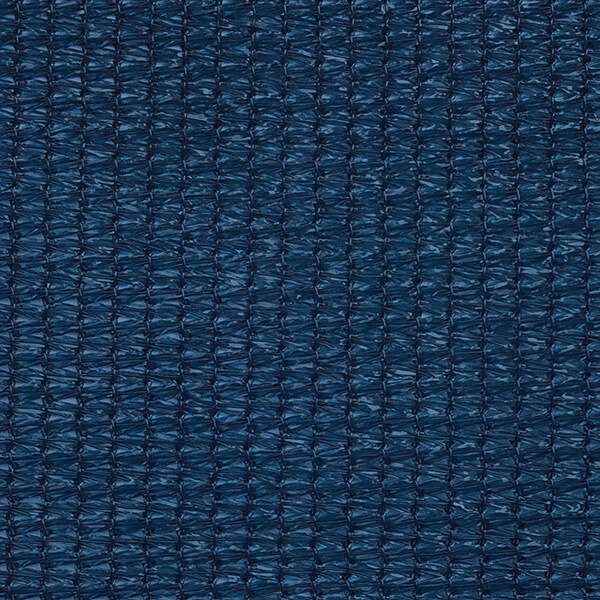

| Navy | 95.2 | 93.8 | 18.8 | 90.9 |

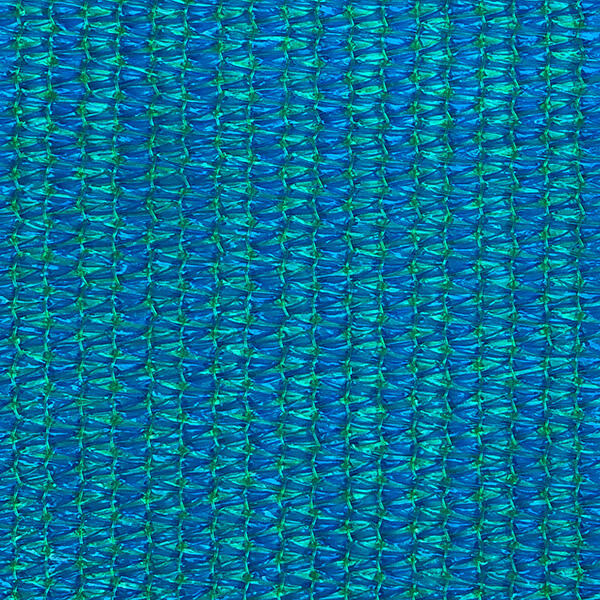

| Turquoise | 88.9 | 87.1 | 8.6 | 78.4 |

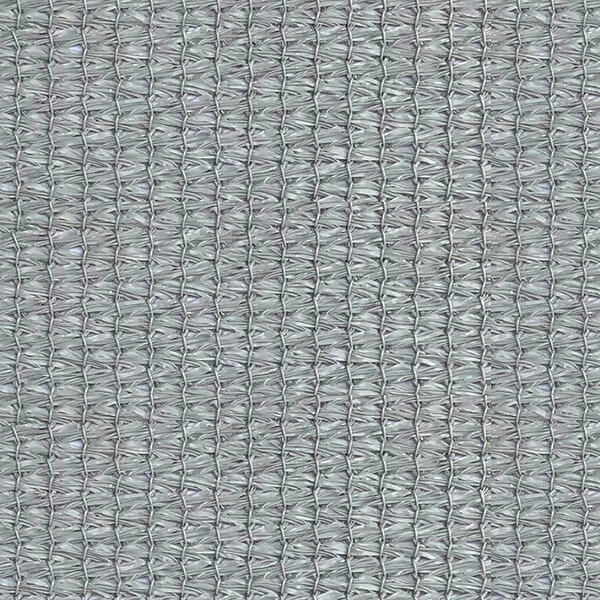

| Steel Grey | 93.3 | 92.7 | 14.9 | 85.1 |

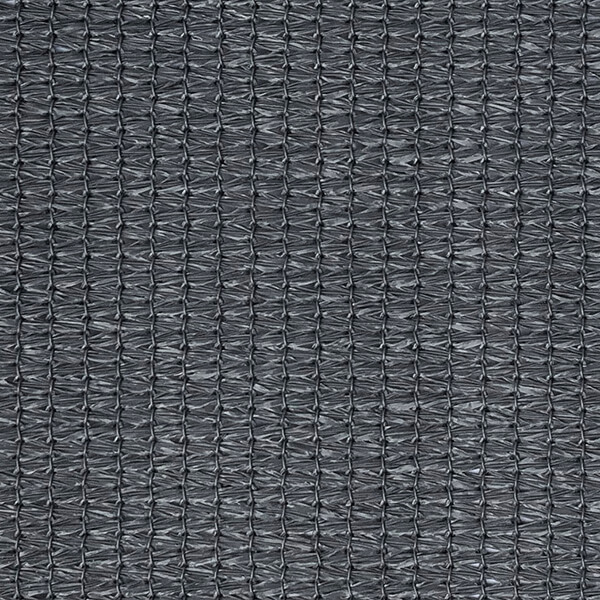

| Gunmetal | 95.3 | 95.1 | 21.6 | 93.5 |

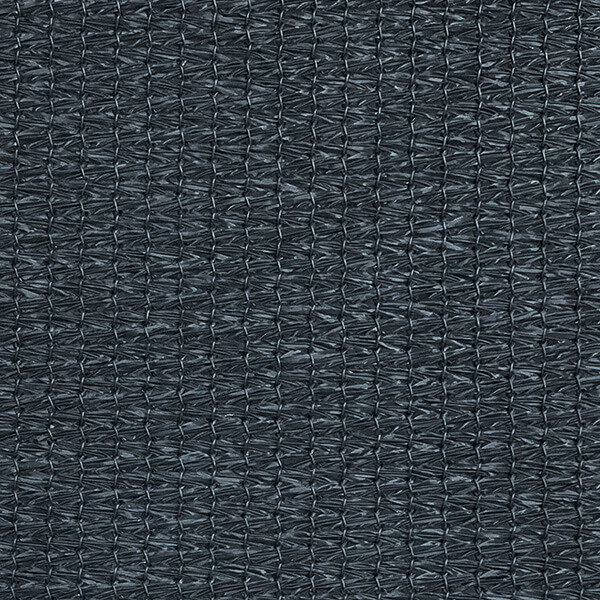

| Charcoal | 94.9 | 94.8 | 19.4 | 94.7 |

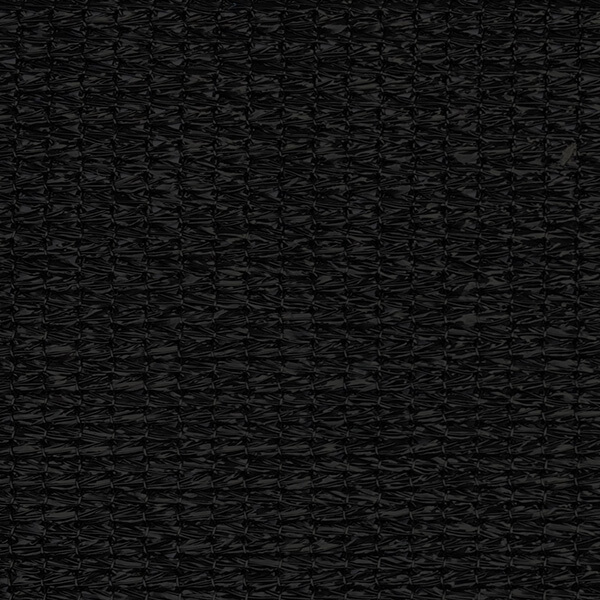

| Carbon Black | 94.8 | 94.7 | 18.9 | 95.4 |
| *Percentage of UVR block |
Nominal weight:
9.6 oz. per square yard / 325 gsm +/- 10%
Available in: 9.8 feet/3.0 meters (width) x 55 yards / 50 meters (length) center folded rolls.*
*Unfolded (straight) rolls are available upon request and would be subject to minimum ordering quantities.
Product Disclaimers:
- The above information represents the results sourced from third party testing authorities, and tolerances may vary by as much as 10%.
- The Manufacturer reserves the right to alter or modify product specifications and colors without notice, and assumes no obligation or liability for the suitability and use of its products other than those applications intended by the manufacturer.
- Colors shown may not be an exact representation of the actual product.
- Outdoor fabrics are subject to harsh conditions and degradation over time is to be expected. Parasol™ is supported with a 10 year limited UV warranty. During this period the fabric will remain serviceable and fit for purpose. Color fading is normal over time. Colors containing red and yellow pigments have a tendency to fade more than others. This is not a loss of strength caused by UV breakdown and is not covered by the product warranty. For more details refer to the supporting Polyfab product warranty.
- Polyfab USA assumes no liability in the event of negligent installation /fabrication or application or choice of cloth.
- During installation, Polyfab shadecloth should not be subject to “pre-stressed” loading in excess of 20%.
Limited Warranty
Polyfab USA LLC (“Polyfab”) warrants to the initial purchaser of the fabric that the fabric will not suffer from
abnormal deterioration from ultra violet exposure for a period of 10 years from the date of installation. The term
abnormal deterioration means deterioration exceeding 10% of the fabric’s original strength for each year over
the 10-year warranty period, and does not include normal wear and tear. If the fabric does suffer from abnormal
deterioration during the 10-year warranty period, Polyfab will, at its option, either replace the fabric or supply
equivalent fabric, or pay to the initial purchaser the cost of replacing the fabric or of acquiring equivalent fabric.
POLYFAB UNDERTAKES NO RESPONSIBILITY FOR THE QUALITY OF THE FABRIC EXCEPT AS
OTHERWISE PROVIDED HEREIN. THERE IS NO IMPLIED WARRANTY THAT THE FABRIC SHALL BE
MERCHANTABLE. POLYFAB ASSUMES NO RESPONSIBILITY THAT THE FABRIC WILL BE FIT FOR ANY
PARTICULAR PURPOSE FOR WHICH YOU MAY BE BUYING THE FABRIC, EXCEPT AS OTHERWISE
PROVIDED HEREIN. THERE IS NO IMPLIED WARRANTY THAT THE FABRIC SHALL BE FIT FOR ANY
PARTICULAR PURPOSE. YOU ACKNOWLEDGE THAT YOU ARE NOT RELYING ON POLYFAB’S SKILL
OR JUDGMENT TO SELECT OR FURNISH THE FABRIC SUITABLE FOR ANY PARTICULAR PURPOSE AND
THAT THERE IS NO WARRANTY WHICH EXTENDS BEYOND THAT PROVIDED HEREIN.
Exclusions and Product Disclaimers
This limited warranty does not cover, and Polyfab is not liable for, abnormal deterioration of fabric occurring due to any of the following circumstances:
• Exposure to pollution, chemicals, solvents, cleaning agents or other substances that are harmful to the performance of the fabric.
• Faulty installation of the fabric or faulty design or manufacture of any structure to which the fabric is attached.
• Improper storing, handling, bracing, use of the fabric or use contrary to the specifications for the fabric.
• Color fading. Color fading is normal over time. Fabric colors containing red or yellow pigments have a tendency to fade more than others. Color Fading is not abnormal deterioration or a loss of strength/breakdown and is not covered by this warranty.
• Minor color variation from fabric samples.
• Minor visual imperfection due to the manufacturing processes.
• The negligent act or omission of any person.
• Misuse, neglect or abuse of the fabric.
• During installation, the fabric should not be subject to “pre-stressed” loading in excess of 20%.
• Wind flap and storm damages are major causes of abnormal deterioration and premature breakdown in any quality outdoor fabric. It is therefore critical that the fabric be installed firm and tight and maintained in a firm condition. Fabric that is allowed to flap and cause rubbing and abrasion as a result of excessive and continual wind flap or storm damage on structural poles and support wires is mechanical breakdown and not covered by this warranty.
• The fabric should be supported by using appropriate strength poles and footings as determined by a professional structural engineer, and fabricated and installed by a qualified contractor in accordance with local building codes.
• Technical testing information supplied by Polyfab is sourced from third-party testing authorities, and tolerances may vary by as much as 10%.
Limitation of Liability
Polyfab’s obligations and liabilities are expressly and exclusively limited to those set forth herein. EXCEPT AS OTHERWISE PROVIDED FOR HEREIN, POLYFAB SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, INCLUDING LOSS OF PROFITS OR OTHER COMMERCIAL LOSSES, INCLUDING CLAIMS BASED ON NEGLIGENCE OR STRICT LIABILITY. IN THE EVENT POLYFAB IS FOUND TO BE LIABLE FOR ANY DAMAGE OR LOSS RELATED TO THE FABRIC, SUCH LIABILITY SHALL BE LIMITED TO THE ORIGINAL PURCHASE PRICE OF THE FABRIC.
Claims Procedure
All claims under this limited warranty must be made in writing, within 30 days from the date upon which the defect became known to the initial purchaser, to Polyfab USA LLC, 1601 N. Sepulveda Blvd. #392, Manhattan Beach, CA 90266. Claims must be supported by a sample of the defective fabric together with proof of purchase, including the date and location of fabric purchase, and photos of the finished installation.
