Our improved Comtex®+ is now ‘Best in Class’ shadecloth offering excellent weight to strength ratio, and is the premium choice for medium to larger residential and commercial projects.

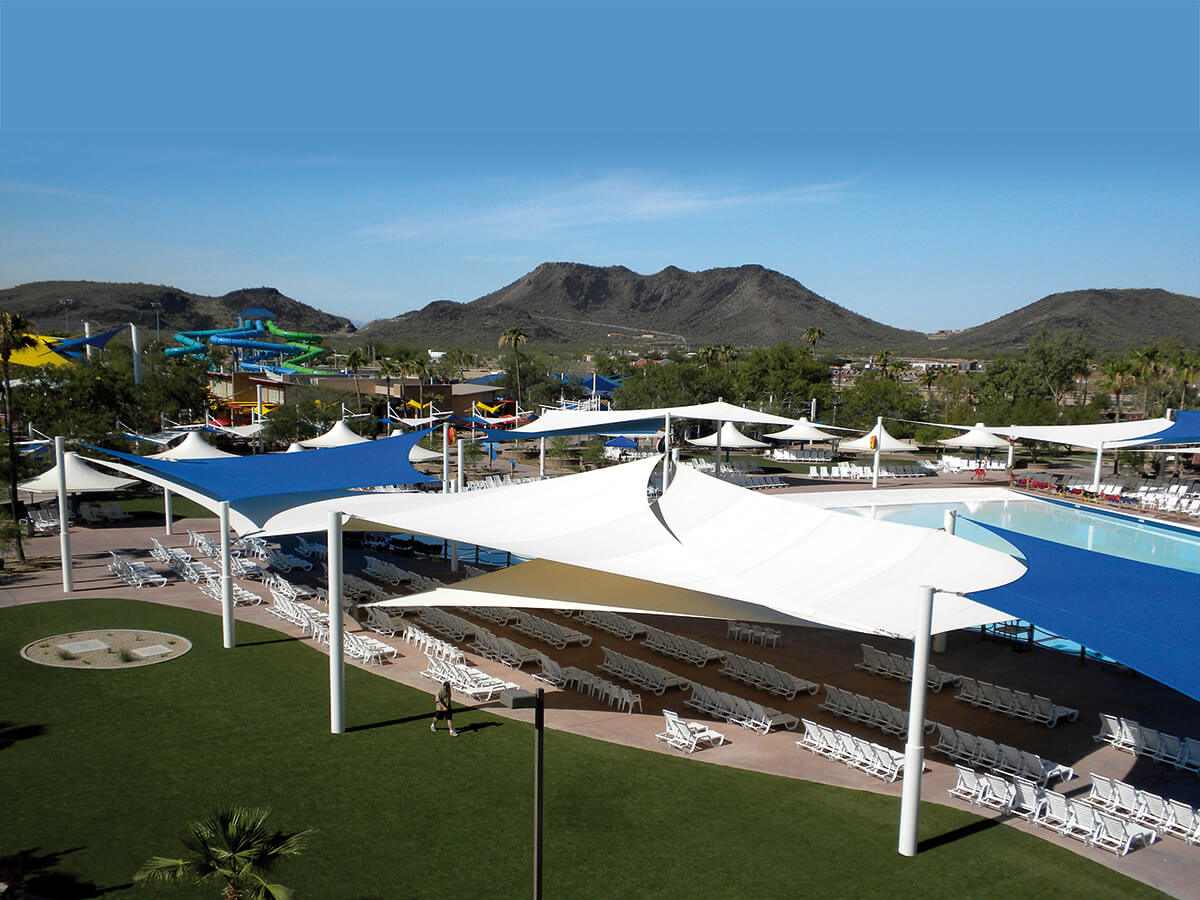

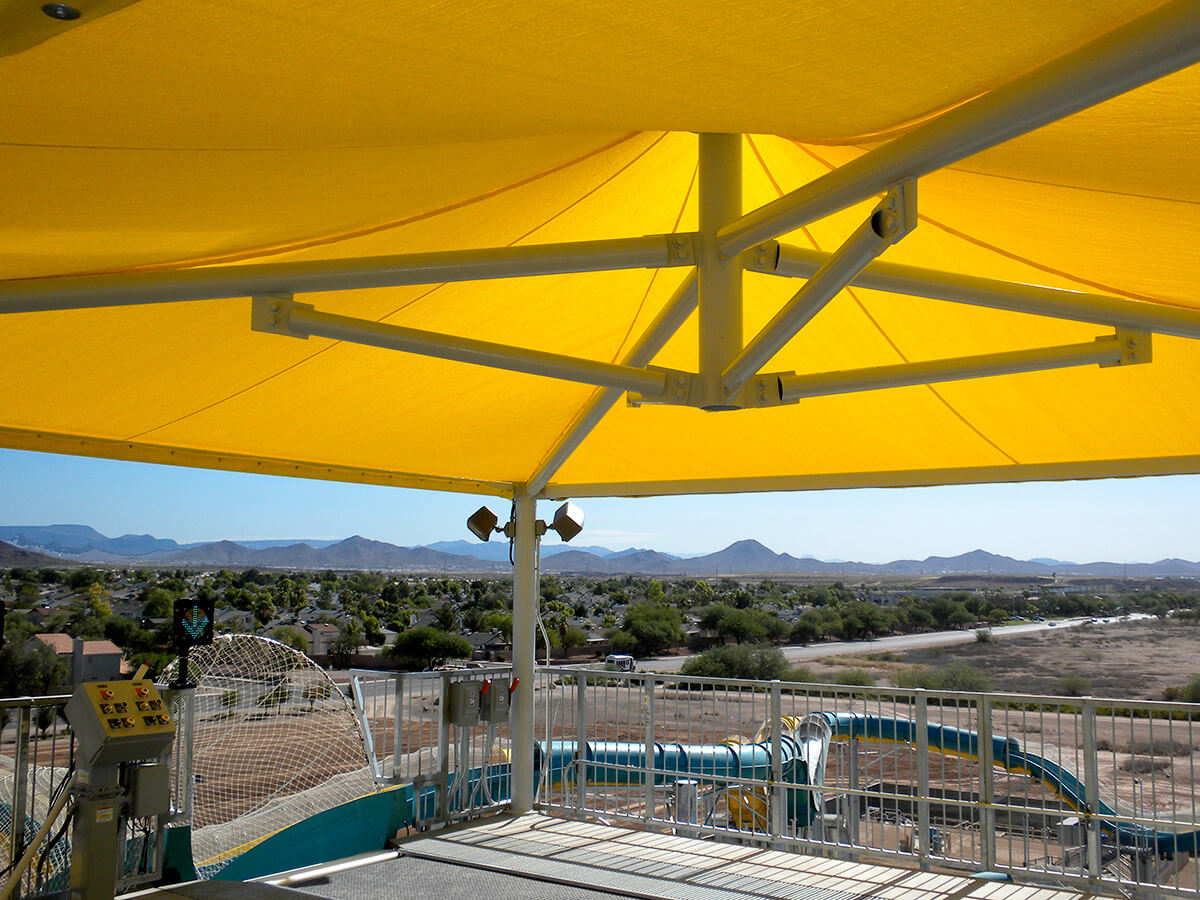

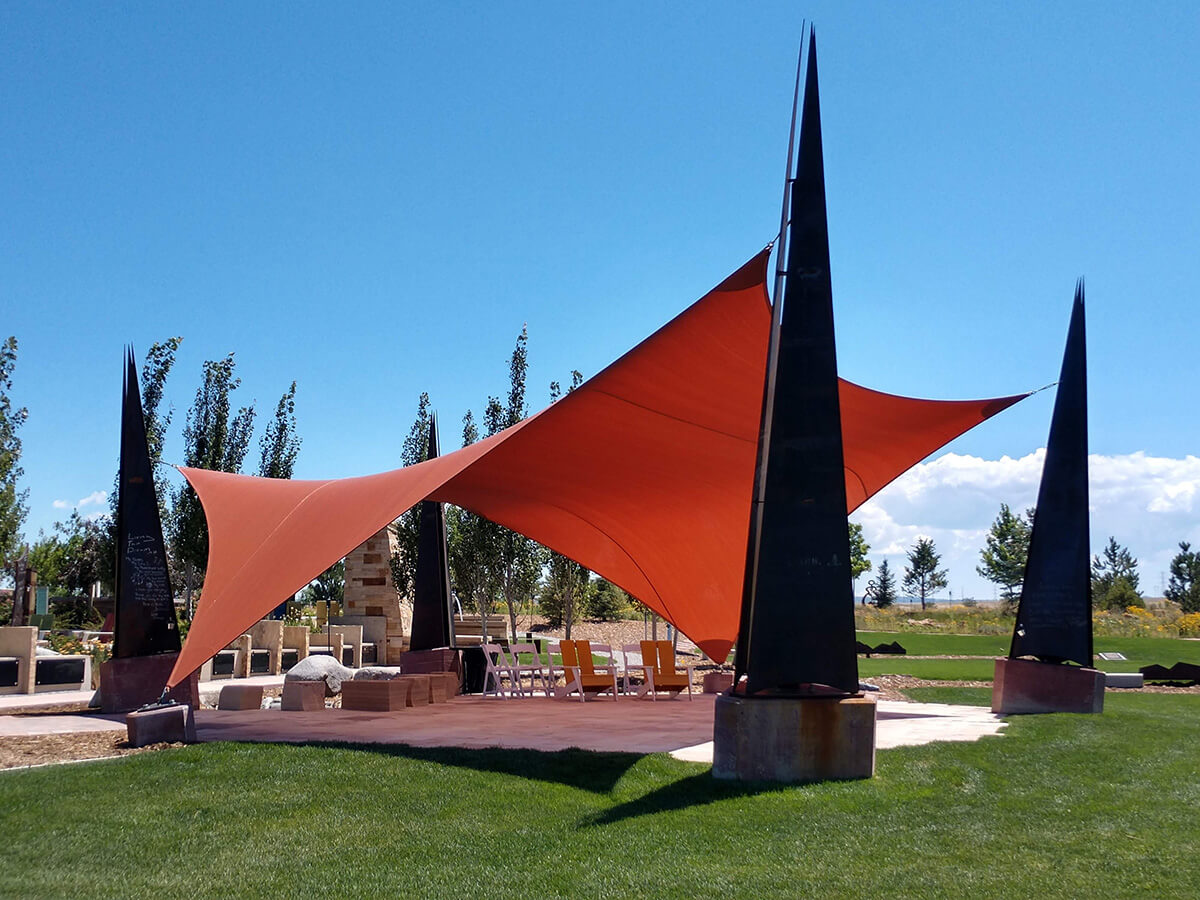

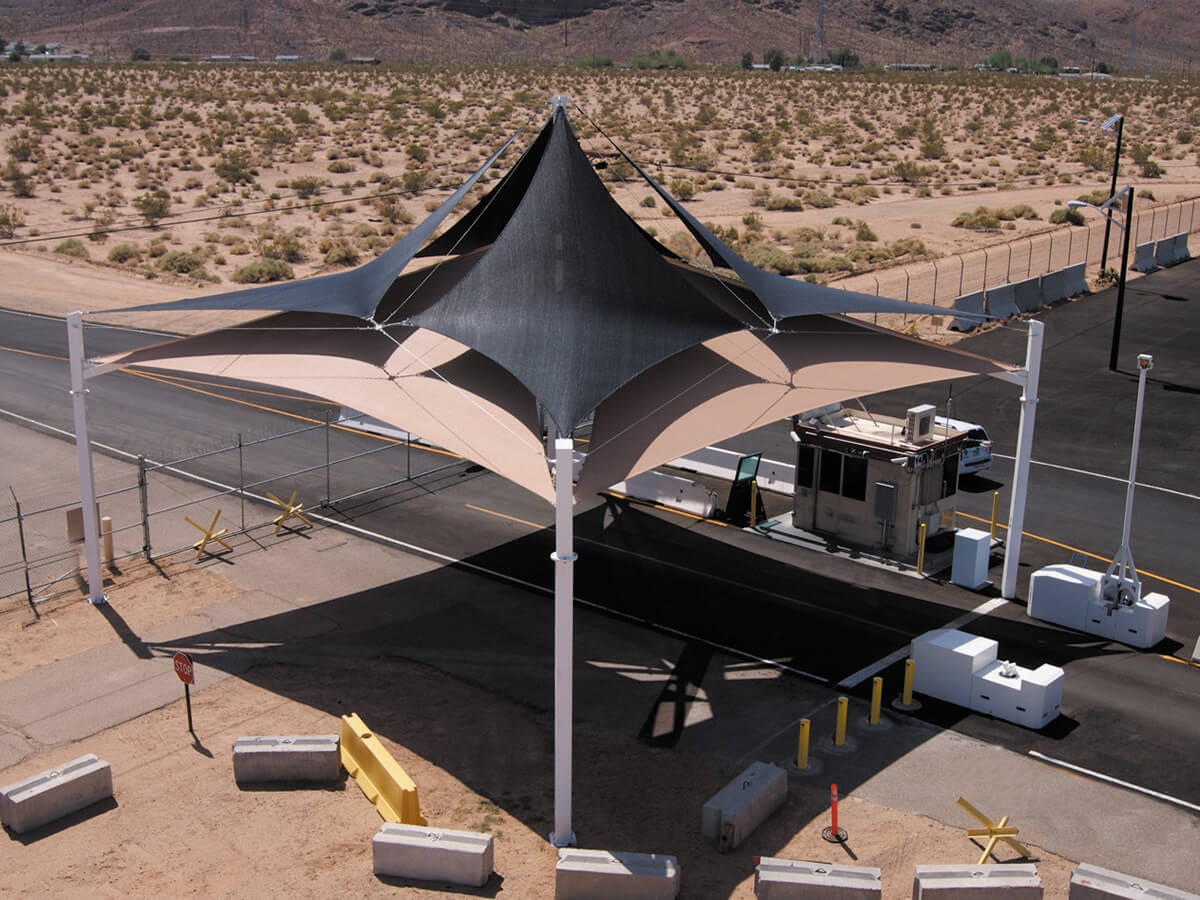

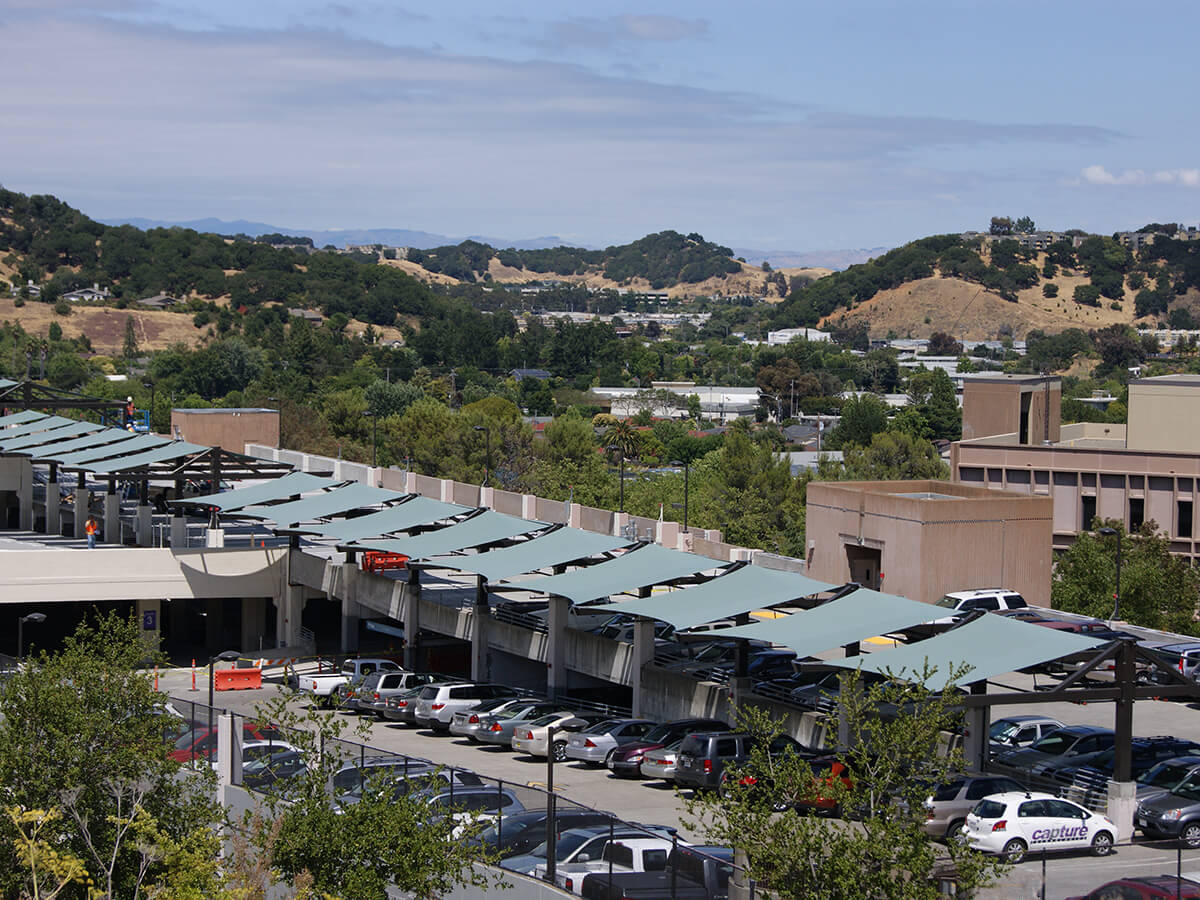

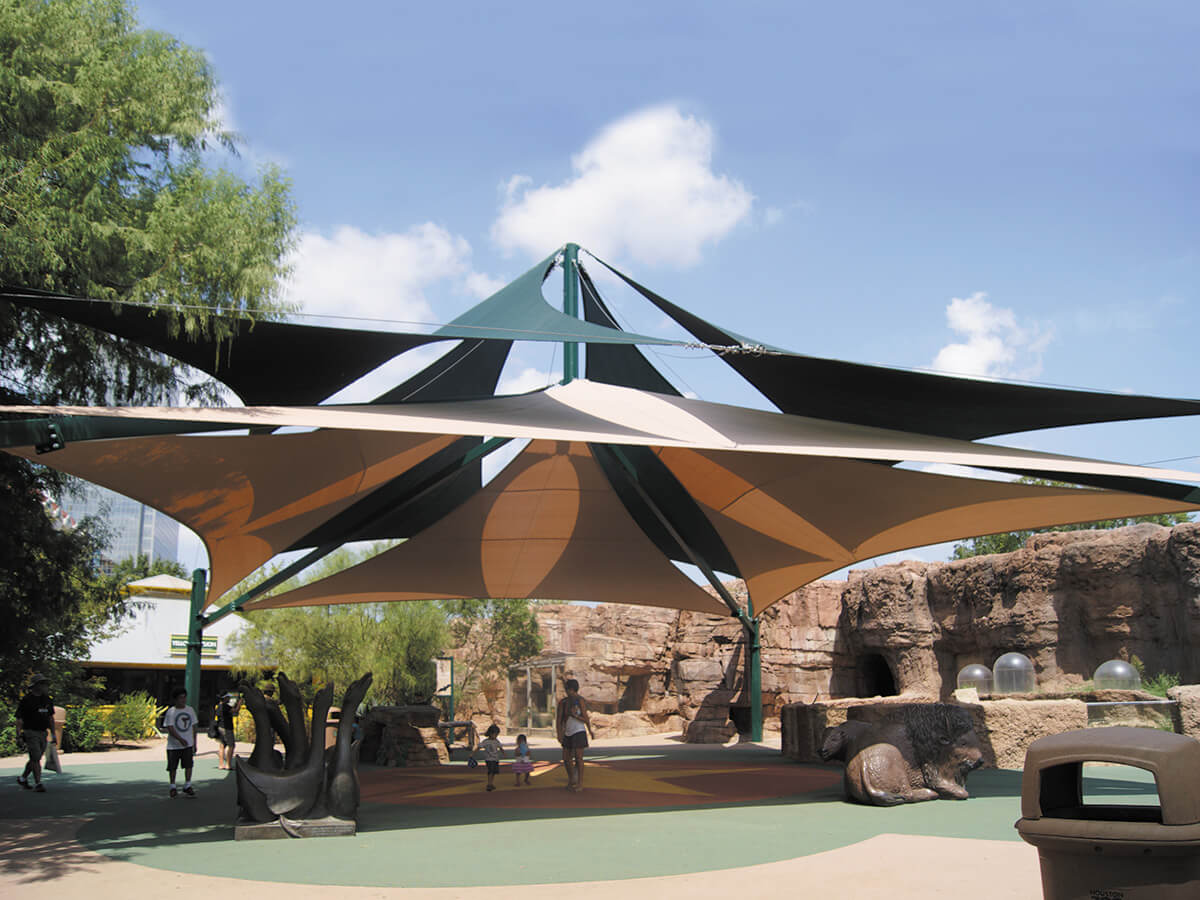

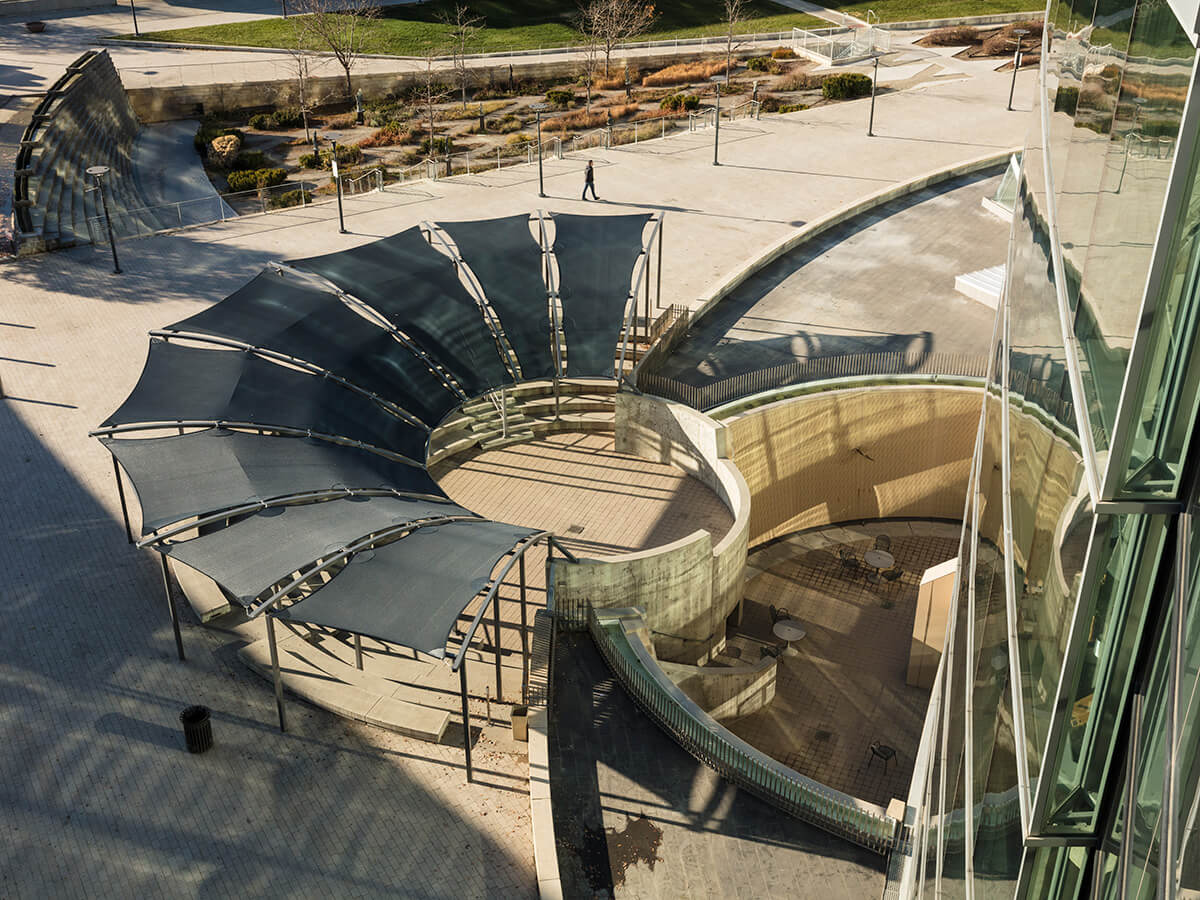

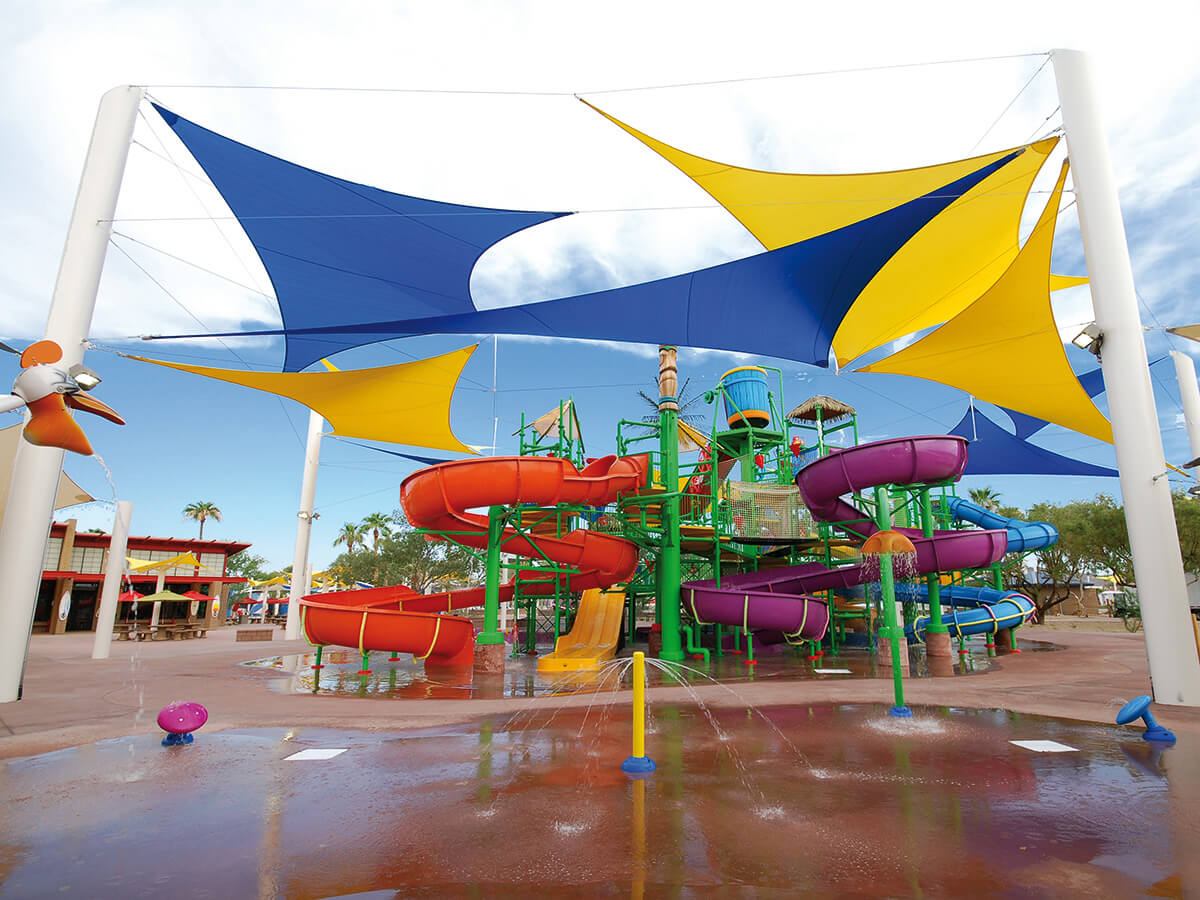

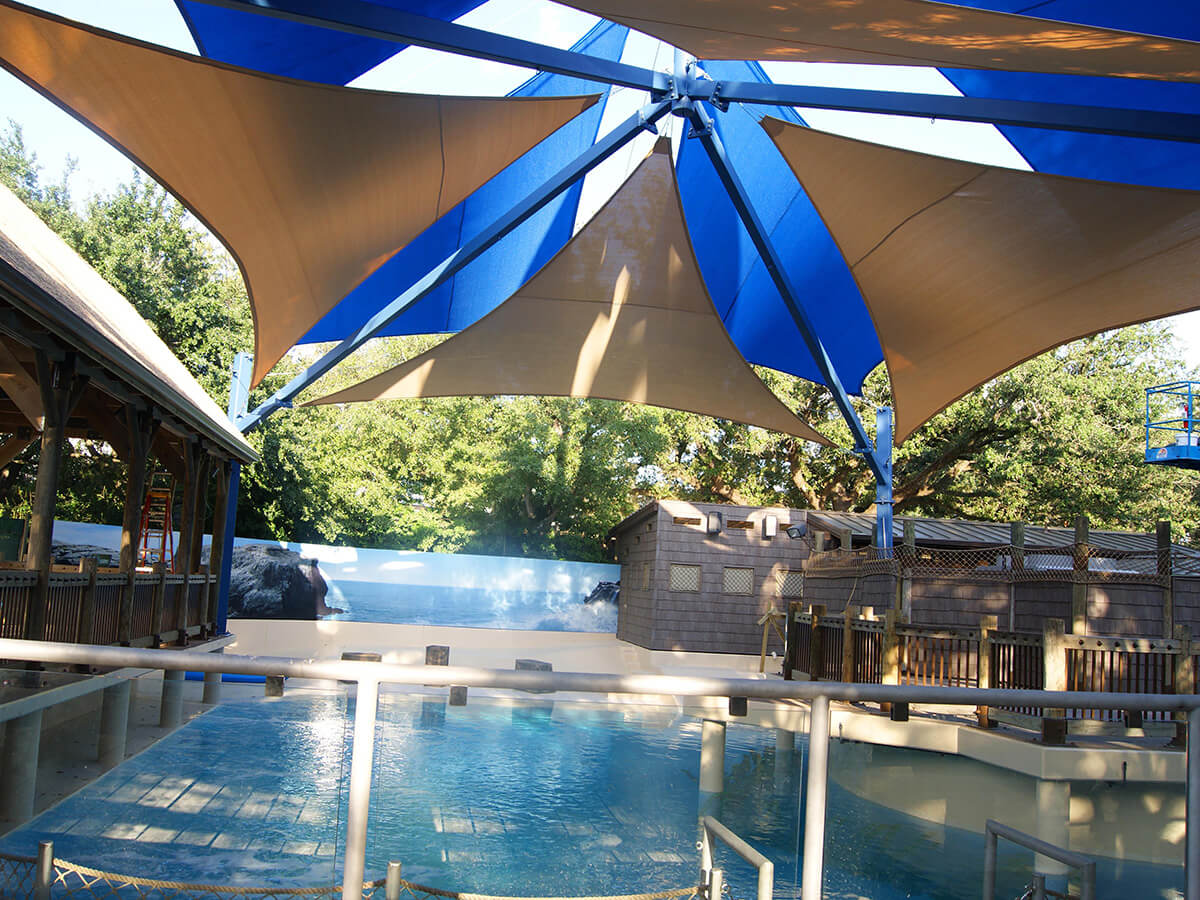

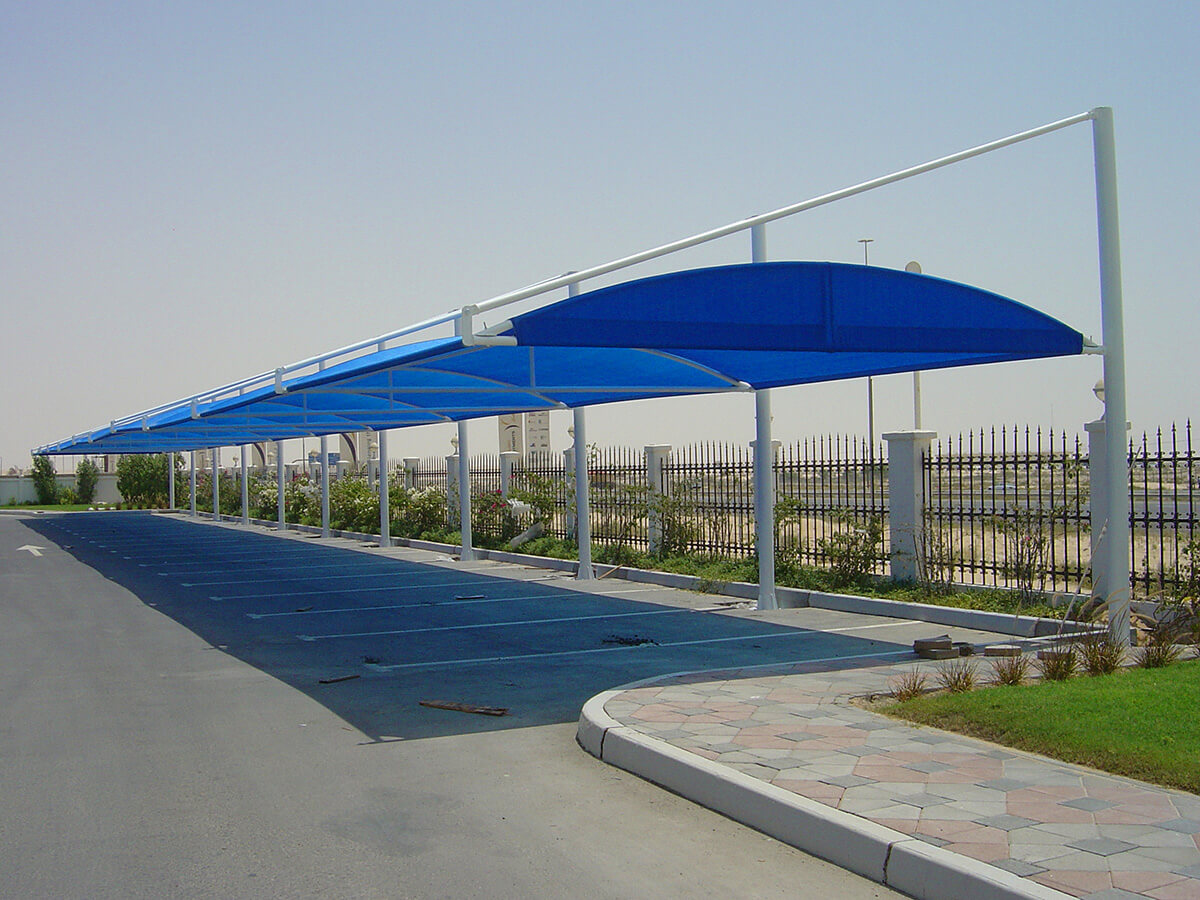

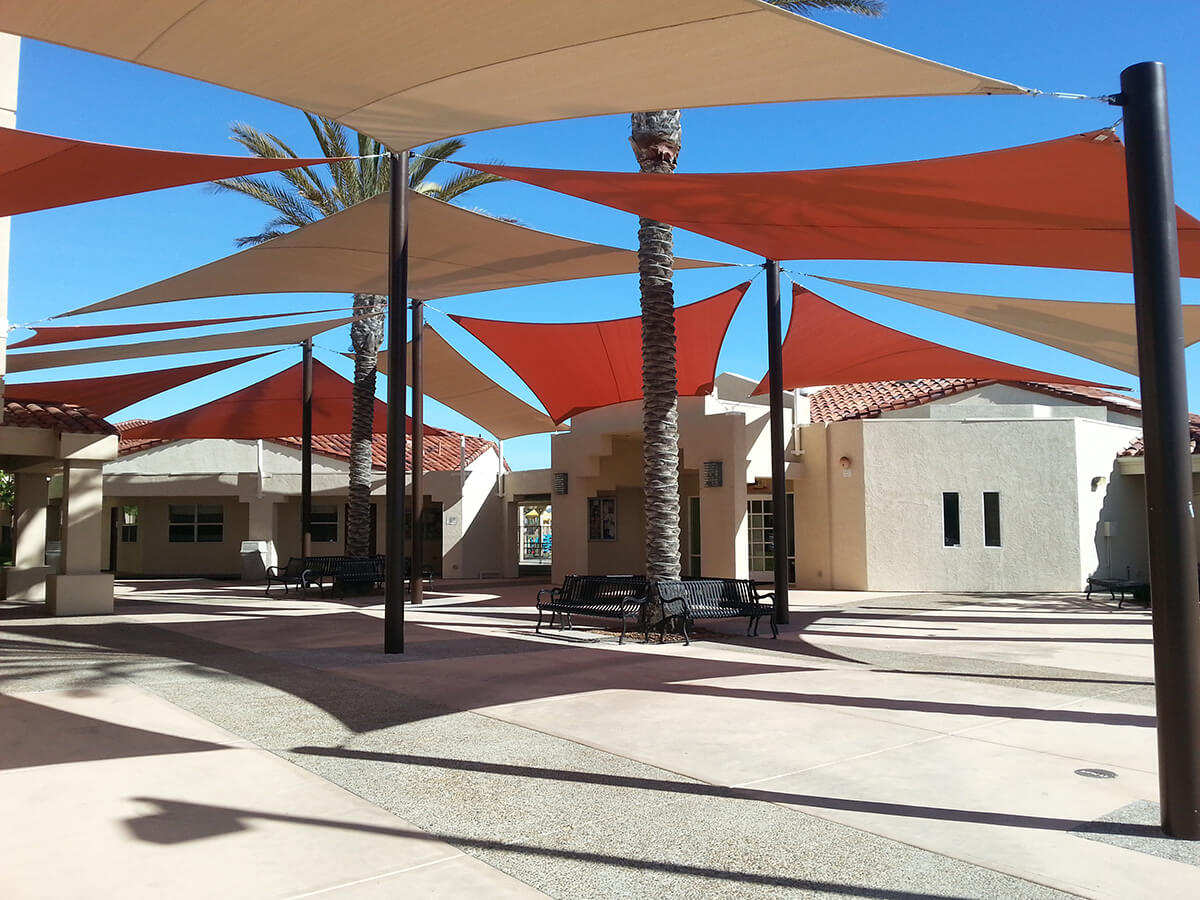

See more Comtex®+ shadesail applications

Premium quality and durability

Comtex®+ is engineered for larger projects that require higher tensile loadings and proven performance. With its new colors, improved pigments, new heat-setting of all fabrics and an extended “full replacement” 12 year warranty, Comtex®+ is now the industry’s premium shade fabric.

Comtex®+ is stentered or ‘heat set’ allowing the fabric to ‘lay-flat’ which means less curling on the edges, easier fabrication, a “softer hand” and greater dimensional stability. The ‘heat setting’ process results in less shrinkage and improved dimensional stability while maintaining high strength and over 90% UV protection. Its industry-leading width helps eliminate seams for less labor cost and greater structural integrity.

Comtex®+ is made from virgin resins and the best UV stabilizers available, which are lead-free, and is made to Australian Standard AS 4174-1994. Comtex®+ meets the following fire standard: NFPA 701-2019 and ASTM E84-20 (Class 1 or A rating)

Available in:

  • 12.5 foot (width) x 33 yard (length) center folded rolls.

Average weight: 10 oz. per square yard

Comtex®+ color range

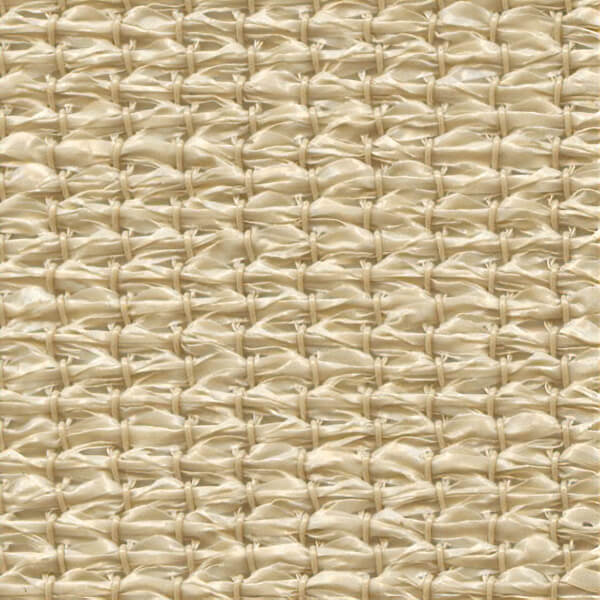

Paperbark (NEW)

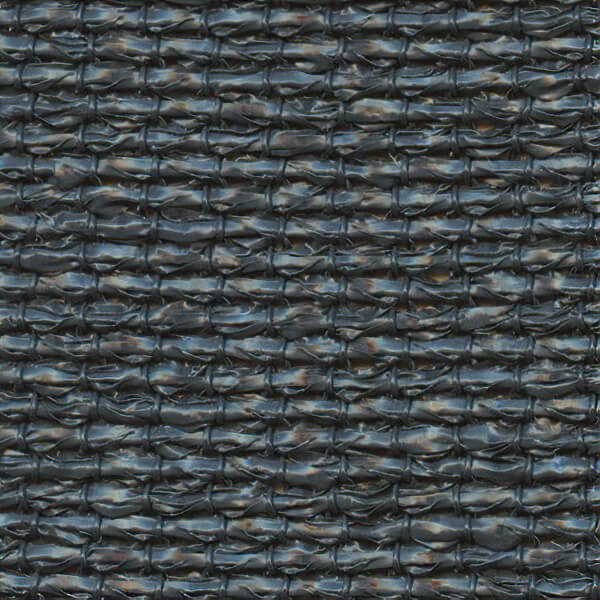

Monument (NEW)

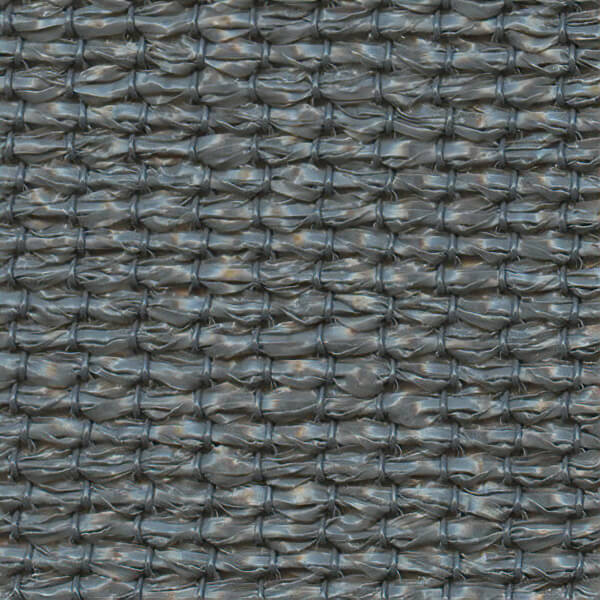

Smoke (NEW)

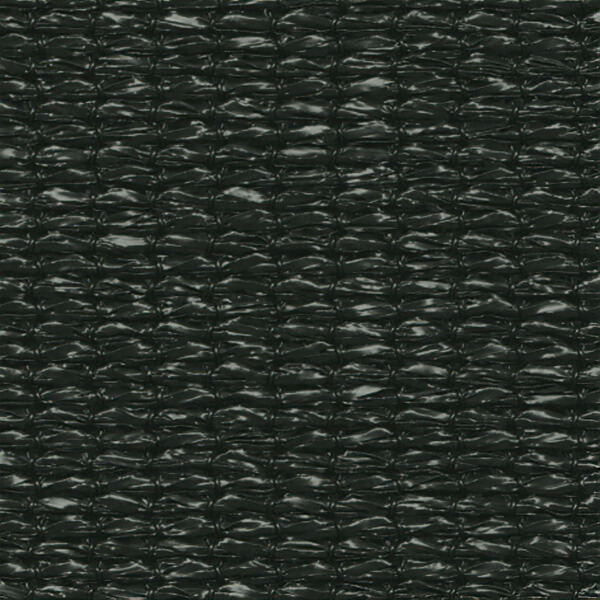

Black

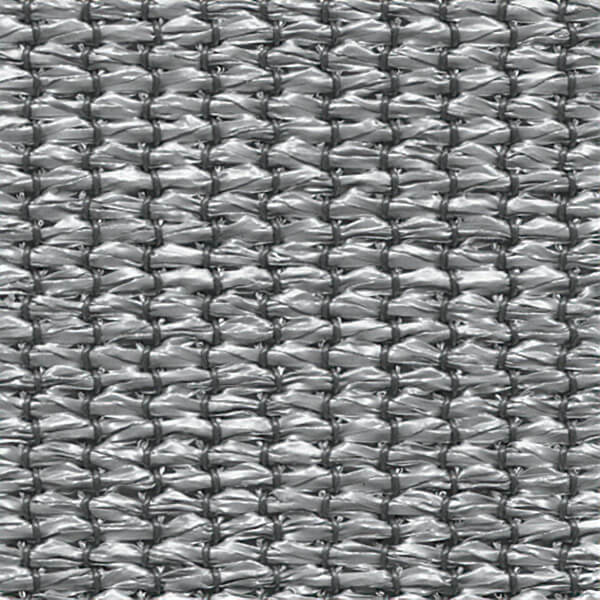

Silver

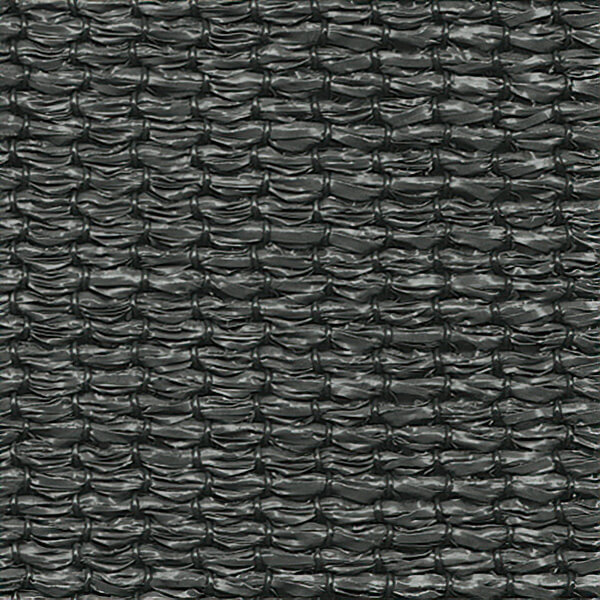

Slate Gray

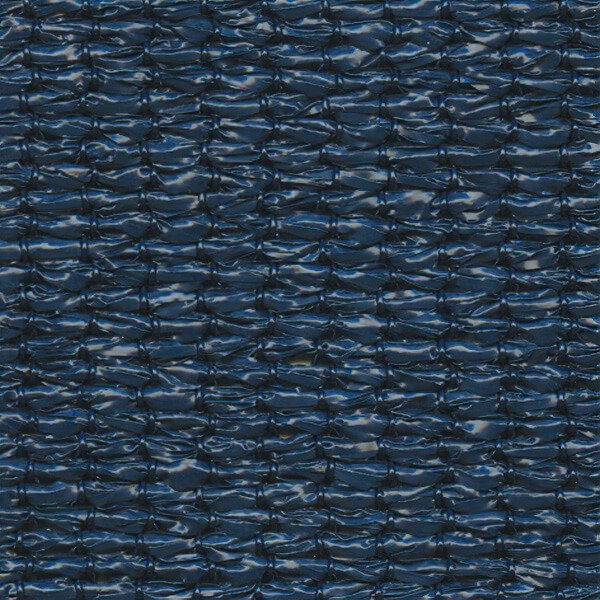

Navy Blue

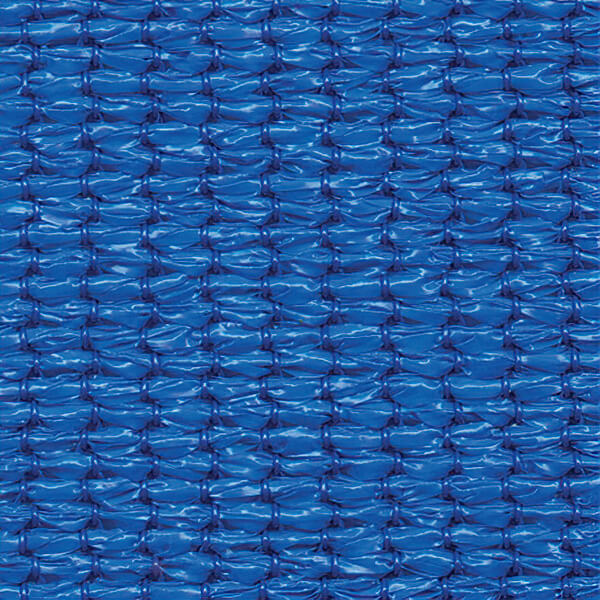

Aquamarine

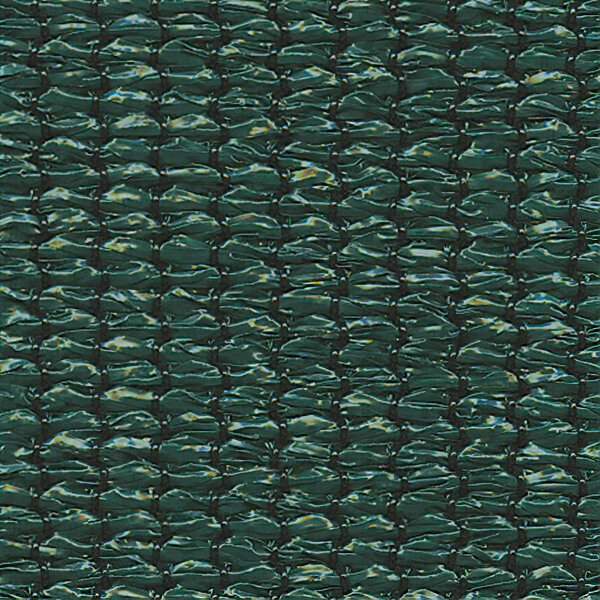

Midnight Green

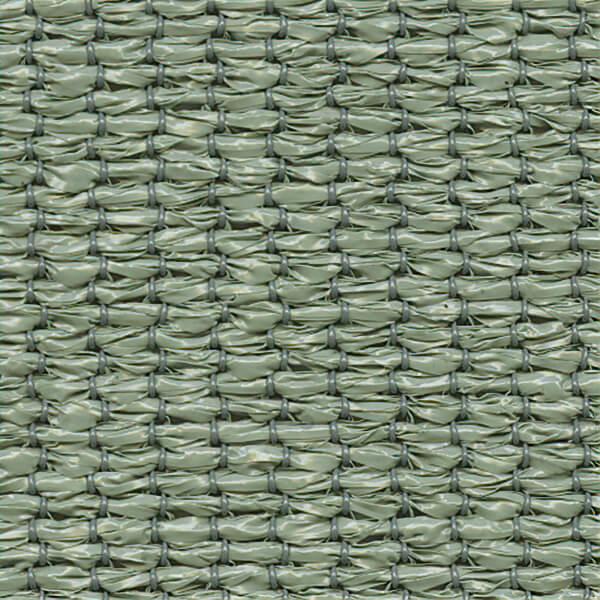

Sage

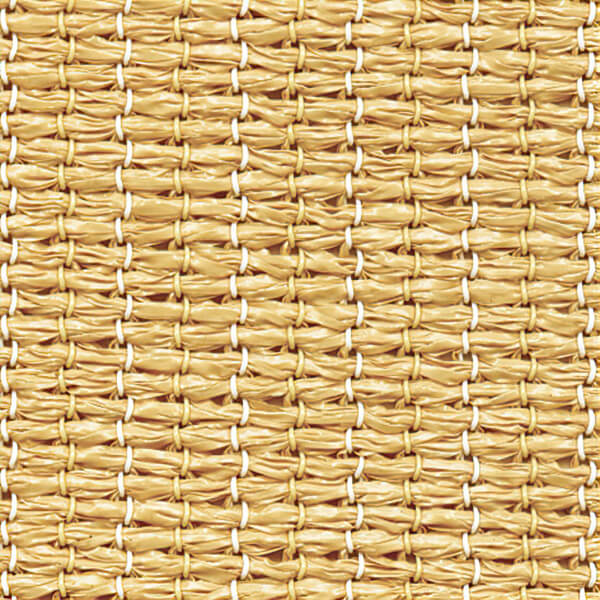

Sandstone

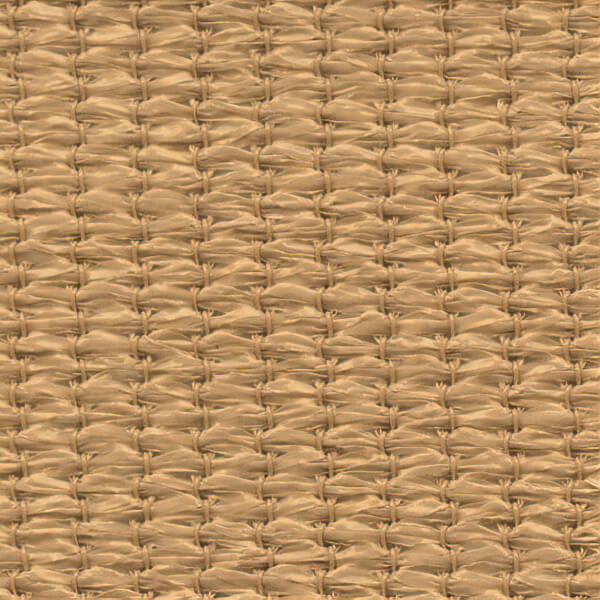

Cappuccino

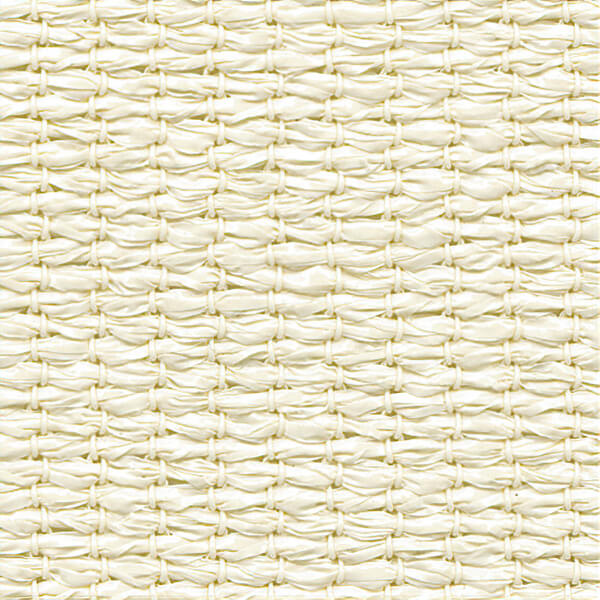

Porcelain

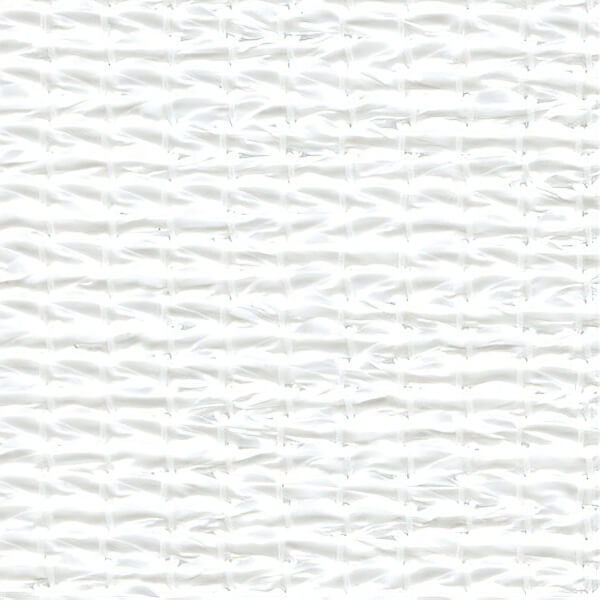

White

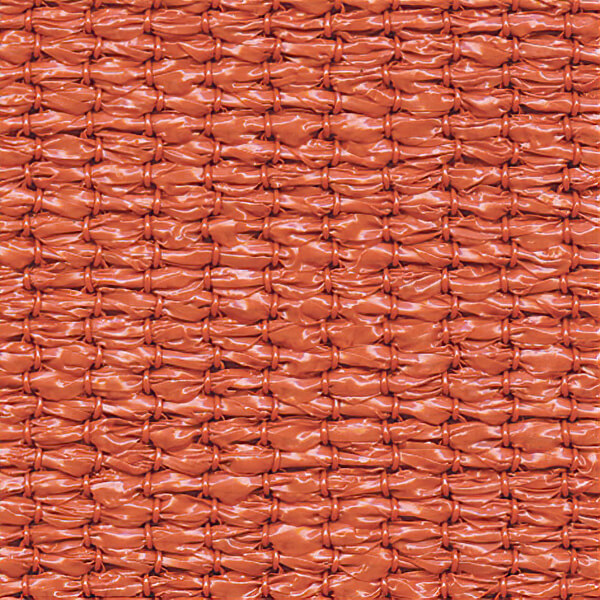

Rust

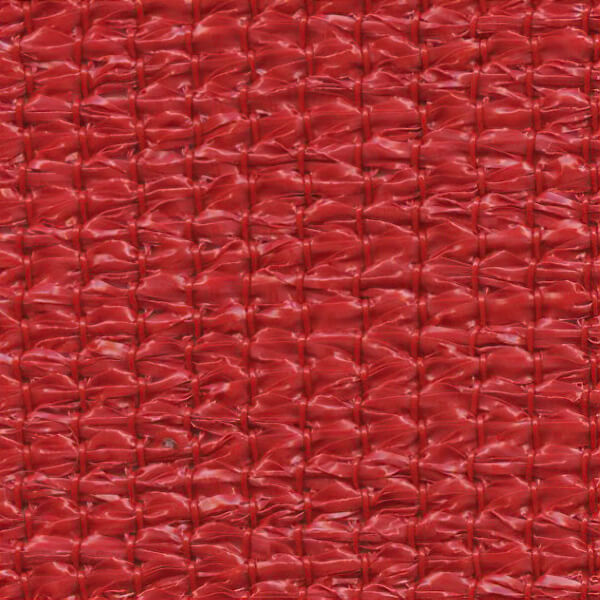

Red

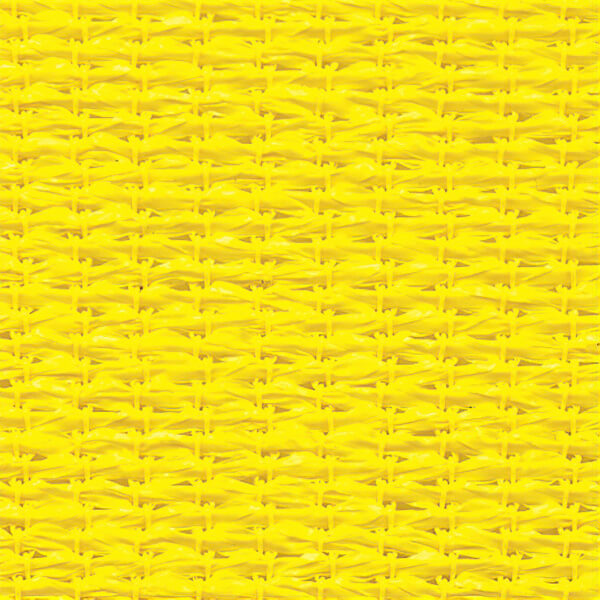

Lemon

Comtex®+ is made to comply with and exceed AU standard AS4174.1994.

See more information about Comtex®+

WARPWEFT
Breaking force (per ASTM D-5034)lbs342270
Elongation at Break (per ASTM D-5034)%8796
Tearing strength (per ASTM D-2261)lbs4138
Mullen Burst (per ASTM D-3786)lbs/inFace593
Ball Burst (per ASTM D-3787)lbfFace450+
ColorsCOVER
FACTOR		SHADE
FACTOR		UVR
BLOCK%		CALCULATED
UVE%		PROTECTION
CATEGORY		SRI
Paperbark (NEW)9383.492.692Very effectiveNot tested
Monument (NEW)9493.894.293Very effectiveNot tested
Smoke (NEW)9290.192.291Very effectiveNot tested
Black9595.495.694Very effective1
Silver9494.194.293Very effective18
Slate Gray9796.797.096Most effectiveNot tested
Navy Blue9795.897.196Most effectiveNot tested
Aquamarine9385.491.791Very effective31
Midnight Green9694.496.495Most effectiveNot tested
Sage9692.996.394Very effective17
Sandstone9688.096.295Most effective52
Cappuccino9589.595.693Very effective36
Porcelain9579.894.694Very effective87
White9677.496.296Most effective96
Rust9387.493.392Very effective33
Red9589.995.695Most effective64
Lemon9474.694.793Very effective79

LIMITED WARRANTY FOR POLYTEX+® & COMTEX+®

POLYTEX+® and COMTEX+® EXTRA HEAVY DUTY KNITTED SHADECLOTH (“fabric”) are premium fabrics designed for use in shade structures and shade sails.

Limited Warranty

Polyfab USA LLC (“Polyfab”) warrants to the initial purchaser of the fabric that the fabric will not suffer from abnormal deterioration from ultra violet exposure for a period of 12 years from the date of installation. The term abnormal deterioration means (i) deterioration exceeding 5% of the fabric’s original tensile and tear strength (both in warp and weft direction) caused by ultra violet radiation and the chemical processes that ultra violet radiation initiates in the plastics and the additives alone for each year over the 12-year warranty period, and does not include normal wear and tear, or (ii) the fabric has mechanically failed during the actual application in the shading environment intended for such fabric. The maximum working load of the fabric should not exceed 60% of the break strength in both warp and weft directions. If the fabric does suffer from abnormal deterioration during the 12-year warranty period, Polyfab will, at its option, either replace the fabric or supply equivalent fabric.

POLYFAB UNDERTAKES NO RESPONSIBILITY FOR THE QUALITY OF THE FABRIC EXCEPT AS OTHERWISE PROVIDED HEREIN. THERE IS NO IMPLIED WARRANTY THAT THE FABRIC SHALL BE MERCHANTABLE. POLYFAB ASSUMES NO RESPONSIBILITY THAT THE FABRIC WILL BE FIT FOR ANY PARTICULAR PURPOSE FOR WHICH YOU MAY BE BUYING THE FABRIC, EXCEPT AS OTHERWISE PROVIDED HEREIN. THERE IS NO IMPLIED WARRANTY THAT THE FABRIC SHALL BE FIT FOR ANY PARTICULAR PURPOSE. YOU ACKNOWLEDGE THAT YOU ARE NOT RELYING ON POLYFAB’S SKILL OR JUDGMENT TO SELECT OR FURNISH THE FABRIC SUITABLE FOR ANY PARTICULAR PURPOSE AND THAT THERE IS NO WARRANTY WHICH EXTENDS BEYOND THAT PROVIDED HEREIN.

Exclusions and Product Disclaimers

This limited warranty does not cover, and Polyfab is not liable for, abnormal deterioration of fabric occurring due to any of the following circumstances:

• Exposure to pollution, chemicals, solvents, cleaning agents or other substances that are harmful to the performance of the fabric.
• Faulty installation of the fabric or faulty design or manufacture of any structure to which the fabric is attached.
• Improper storing, handling, bracing, use of the fabric or use contrary to the specifications for the fabric.
• Color fading. Color fading is normal over time. Fabric colors containing red or yellow pigments have a tendency to fade more than others. Color Fading is not abnormal deterioration or a loss of strength/breakdown and is not covered by this warranty.
• Minor color variation from fabric samples.
• Minor visual imperfection due to the manufacturing processes.
• The negligent act or omission of any person.
• Misuse, neglect or abuse of the fabric.
• During installation, the fabric should not be subject to “pre-stressed” loading in excess of 20%.
• Wind flap and storm damages are major causes of abnormal deterioration and premature breakdown in any quality outdoor fabric. It is therefore critical that the fabric be installed firm and tight and maintained in a firm condition. Fabric that is allowed to flap and cause rubbing and abrasion as a result of excessive and continual wind flap or storm damage on structural poles and support wires is mechanical breakdown and not covered by this warranty.
• The fabric should be supported by using appropriate strength poles and footings as determined by a professional structural engineer, and fabricated and installed by a qualified contractor in accordance with local building codes.
• Technical testing information supplied by Polyfab is sourced from third-party testing authorities, and tolerances may vary by as much as 10%.

Limitation of Liability

Polyfab’s obligations and liabilities are expressly and exclusively limited to those set forth herein. EXCEPT AS OTHERWISE PROVIDED FOR HEREIN, POLYFAB SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, LABOR COSTS OR SPECIAL DAMAGES, INCLUDING LOSS OF PROFITS OR OTHER COMMERCIAL LOSSES, INCLUDING CLAIMS BASED ON NEGLIGENCE OR STRICT LIABILITY. IN THE EVENT POLYFAB IS FOUND TO BE LIABLE FOR ANY DAMAGE OR LOSS RELATED TO THE FABRIC, SUCH LIABILITY SHALL BE LIMITED TO THE ORIGINAL PURCHASE PRICE OF THE FABRIC.

Claims Procedure

All claims under this limited warranty must be made in writing, within 30 days from the date upon which the defect became known to the initial purchaser, to Polyfab USA LLC, 1601 N. Sepulveda Blvd. #392, Manhattan Beach, CA 90266. Claims must be supported by a sample of the defective fabric together with proof of purchase, including the date and location of fabric purchase, and photos of the finished installation.

Download the Limited Warranty For Polytex+® & Comtex+® (pdf)

Polyfab™ Heavy Duty Shadecloth is an Industrial Textile made from High Density Polyethylene, and combines Ultra Violet (UV) stabilizers and color additives.  Polyfab shadecloth has excellent fade resistance but all outdoor fabrics are subject to gradual fading over time.  Some colors have a tendency to fade more than others.

During the manufacturing process imperfections may occur. These imperfections are cosmetic only, and will not impact or interfere with the performance of the life of the shade fabric or the function for which it has been designed.

Your shade sail canopy or shade structure should be installed firm and tight so as to reduce windflap in the shade fabric. Shade fabric that is loose and sloppy will cause premature failure due to mechanical breakdown. This is not UV breakdown and is not covered by the warranty. The shade sail will require periodic maintenance to ensure that the shadecloth fabric remains tight.

Your shadecloth canopy may become dirty over time. (White shadecloth, especially, can pick up dirt from handling, fabrication and installation if extra care is not taken).  Care should be taken to avoid Chemicals that may contain Bleach, or other industrial Chemicals containing Sulphur and/or Halogens (Chlorine Bromine). These Chemicals may attack the UV stabilizers within the Shadecloth, thus reducing the life of the product and voiding the warranty.

The following list of chemicals that may cause such interactions are only some examples and not exhaustive. Such chemicals may include: pesticides, metals, metal oxides and metal salts, all halogens and chemical compounds containing halogens or sulphur in all their oxidation states.

Care should be taken to avoid exposure to gasoline, kerosene, solvents, oils, etc.

When cleaning the shadecloth, we recommend the use of a mild dish washing liquid with the use of a low pressure water hose and a soft scrubbing brush. We do not recommend the use of high pressure water to blast the fabric clean.

The fabric warranty does not pertain to such damage caused by storms, hailstorm, earthquake, mechanical damage done by birds or other animals, fire, lightning etc. Again this is not an exhaustive list and it is for reference only.  Please refer to our UV Warranty for further information.

If you remove the shade sail over winter, ensure that it is stored away from rodents and other pests, preferably stored in a protective bag. Make sure the fabric is completely dry before putting away to avoid mildew damage.

Download the Shade Sail Care & Maintenance Brochure (pdf)
